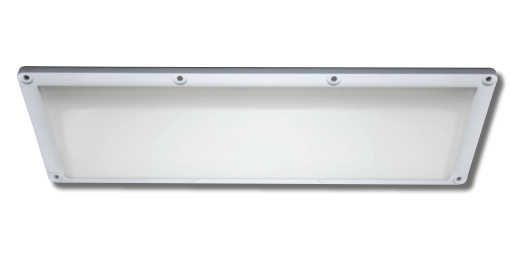

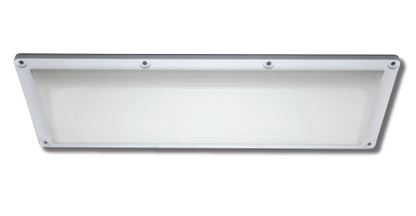

Shat-R-Shield Ironclad Linear Pro Large-Area Correctional LED Light

The Shat-R-Shield Ironclad Linear Pro is a heavy-duty LED fixture designed to provide higher-output lighting for large areas in correctional and institutional facilities. Its low-profile, tamper-resistant construction is designed to resist impact, attempted removal and access to fixture components in demanding secure environments.

• Safety features:
  • Anchored flush onto ceiling with 8 spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners
  • Extreme durability - hammer & knife tested
  • No areas to hide or conceal contraband
  • Damp location rated
  • No accessible parts or hinges
  • No maintenance needed
  • No parts to cut into with weapons & tools

  • No rusting or peeling paint

• Features:
  • Wattage: 40W or 80W
  • CCT: 4000K or 5000K
  • Mount Type: Center Mount (CM)
  • Night light/count light: optional (Y/N)
  • Voltage: 120V-277V
  • Main Light CRI: 80
  • Night Light CRI: N/A

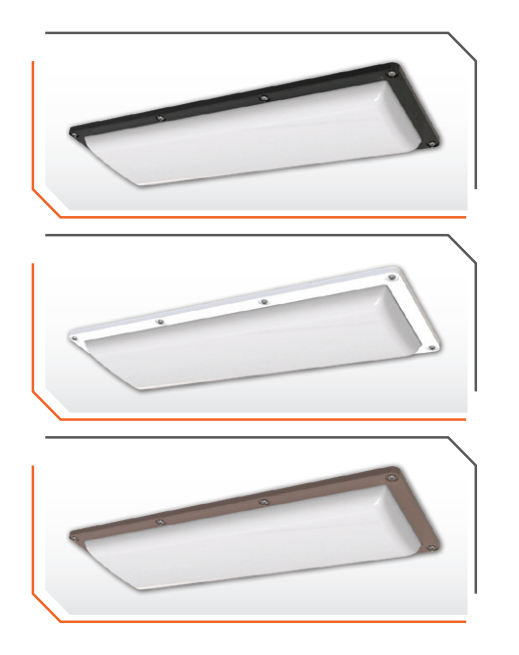

  • Frame Material: Powder Coat White (S2) (also available in Powder Coat Black (S1), Powder Coat Bronze (S3) or Stainless Steel (SS))
  • Lens Type: Urethane (UR)
  • Optional accessories: 14 ga. surface box, box with one conduit hole, box with two conduit holes, JBox-long box for ACSU, JBox with thin profile, angled corner box, corner box with 3/8” mounting holes, corner box with outlet, 1-foot whip, 2-foot whip, sample whip, sample whip + sample hardware, 10-foot 4-wire whip with Liquatite conduit, spike anchors, tamperproof bolts/inserts, cinder block fasteners, metal ceiling screws, separate battery backup unit, touch switch and dimmable option
• Fixture construction:
  • One-piece frame - .500” thick steel, epoxy powder coated
  • Lens - .500” thick cast, diffused translucent, highly engineered urethane with Shore hardness D80+, tensile strength 5,400 psi and impact strength 55 in. lbs./in.
  • Aluminum heat sink to maintain thermal management
• Specifications:
  • Lumens: 4,400 (40W), 8,500 (80W)
  • Count/Night Light Lumens: 830
  • Light Engine CCT: 5000K, 4000K
  • Count/Night Light CCT: 2700K
  • Life Hours: L70>75,000 hrs; Projected >100,000 hrs
  • Footcandles: 60 fc at desk level; 30 fc on the floor w/MH 9 ft
  • Voltage: Universal 120-277V
  • Operating Temperature: -20°C to 45°C
  • Shipping Weight: 15 lbs. (40W Linear Pro), 16 lbs. (80W Linear Pro)

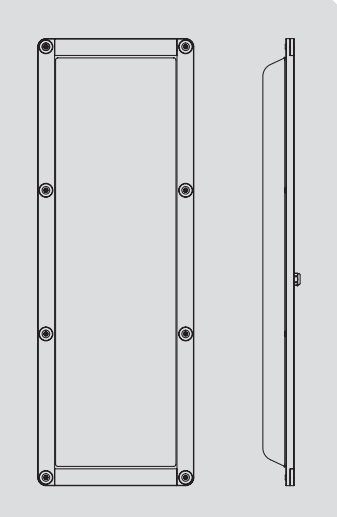

  • Dimensions: 25.8” long x 8.1” wide x 1.8” tall
• Warranty: 5 year limited warranty
• Certifications: cULus, UL Damp Location, IK10 Impact Rating, BAA, BABA and TAA
• Manufactured in America with globally and domestically sourced components

Large-Area Lighting for Correctional Facilities

The Linear Pro is designed for correctional applications that require greater light output or coverage while maintaining the durability and tamper resistance expected in a high-abuse environment.

Its heavy steel frame, thick urethane lens, recessed mounting hardware and low-profile construction help resist impact, attempted removal and access to internal fixture components. The design also minimizes spaces where contraband could be concealed. An optional count/night-light module is available for facilities that require an additional low-output lighting mode.

The Linear Pro is part of Shat-R-Shield's Ironclad Heavy Duty Series and is IK10 impact rated for demanding correctional and institutional applications. Explore our complete selection of Correctional & Detention Facility Lighting for additional cell, shower, common-area and facility lighting options.

For large-area applications requiring a corner mounting configuration, see the Shat-R-Shield Ironclad Corner Pro Correctional Area LED Light.

For monitored areas where general-duty construction is appropriate, see the Shat-R-Shield GDL General-Duty Linear Light.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for correctional, institutional, industrial and other demanding environments. Its Ironclad line includes durable, tamper-resistant and high-abuse lighting for correctional cells, showers, common areas, utility spaces and other secure-facility applications.
