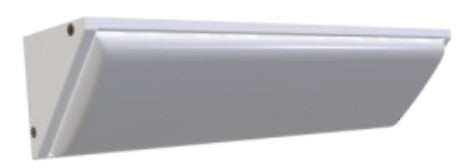

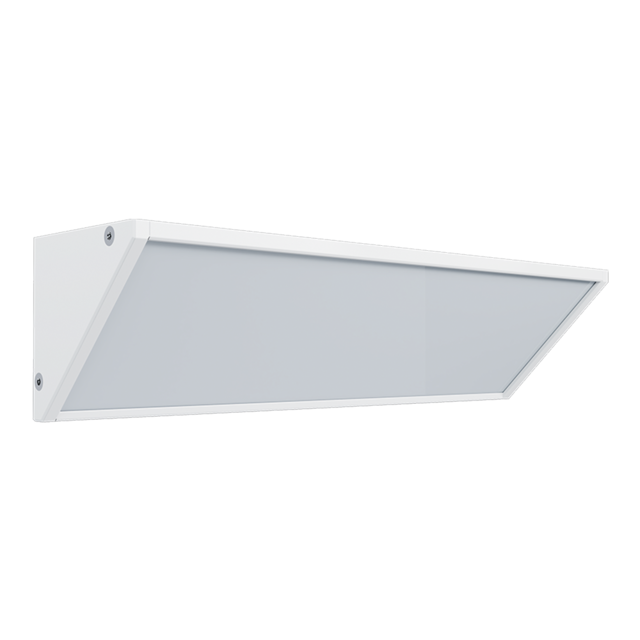

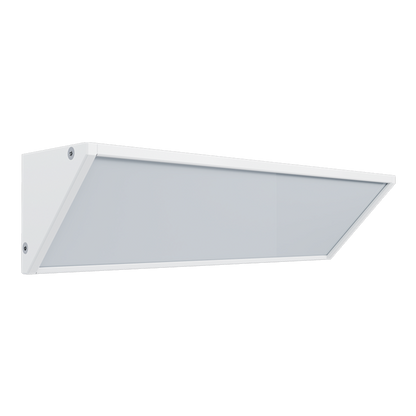

Shat-R-Shield Ironclad Corner Pro Correctional Area LED Light

The Shat-R-Shield Ironclad Corner Pro is a durable LED fixture designed to mount flush where the wall meets the ceiling in correctional and institutional facilities. Its heavy-gauge construction, impact-resistant lens options and secure mounting help resist impact, tampering, attempted removal and access to fixture components.

• Features:
  • Wattage: Selectable to 42W-High, 32W-Med, 24W-Low (042)
  • CCT: Selectable to 3500K-Warm White, 4000K-Natural White, 5000K-Cool White (SK)
  • Mount Type: Center Mount (CM)

  • Count/Night Light: Optional - Yes (Y) or No (N)
  • Voltage: 120-277 VAC (VH)
  • Frame Material: 1/2" thick steel, Powder Coat White (WH)
  • Lens: 1/4" Polycarbonate (PC), 1/2" Polyurethane (UR), or Laminated Glass
  • Optional accessories (additional charges may apply for some options and accessories): tapcon concrete screws, cinder block fasteners, metal ceiling screws, 1' whip, 2' whip, sample whip, sample whip + sample hardware
• Fixture construction:

  • One-piece 0.500" thick steel frame, epoxy powder coated
  • Lens - 1/4" Polycarbonate, 1/2" Polyurethane, or Laminated Glass
  • Aluminum heat sink for thermal management
  • Extreme Durability - hammer & knife tested

  • Secure installation with no accessible parts or hinges
  • IK10 impact resistance

• Specifications:

  • Lumens: 2800-4500 lm (polycarbonate lens), 2500-4200 lm (urethane lens)

  • CCT: 3500K-Warm White, 4000K-Natural White, 5000K-Cool White

  • Main Light CRI: 80
  • Night Light CRI: 90
  • Life Hours: L70>75,000 Hours; Projected >100,000 Hours

  • Voltage: 120-277 VAC
  • Operating Temp: -20°C to 45°C
  • Dimensions: 5.5” x 5.5” x 23”

• Warranty: 5 year limited warranty

• Certifications: IK10 Impact Rating, cULus, UL Damp Location
• Manufactured in America with globally and domestically sourced components

Corner-Mounted Lighting for Correctional Facilities

The Corner Pro is designed for correctional and institutional areas where mounting a light fixture at the wall-to-ceiling transition can help provide broad area illumination while limiting occupant access to the fixture. Its corner-mounted design makes it particularly useful in prison, jail and detention environments where durability and resistance to tampering or attempted removal are important.

The fixture combines a heavy-gauge mounting box and steel frame with impact-resistant lens options and secure installation with no accessible hinges. Field-selectable wattage and color temperature allow installers to adjust light output for different facility requirements, and an optional count/night light is available.

The Corner Pro carries an IK10 impact rating and is available with polycarbonate and urethane lens configurations for different environmental requirements.

For large-area applications requiring a conventional linear mounting configuration, see the Shat-R-Shield Ironclad Linear Pro.

Explore our complete selection of Correctional & Detention Facility Lighting for additional cell, shower, common-area and large-area fixtures.
