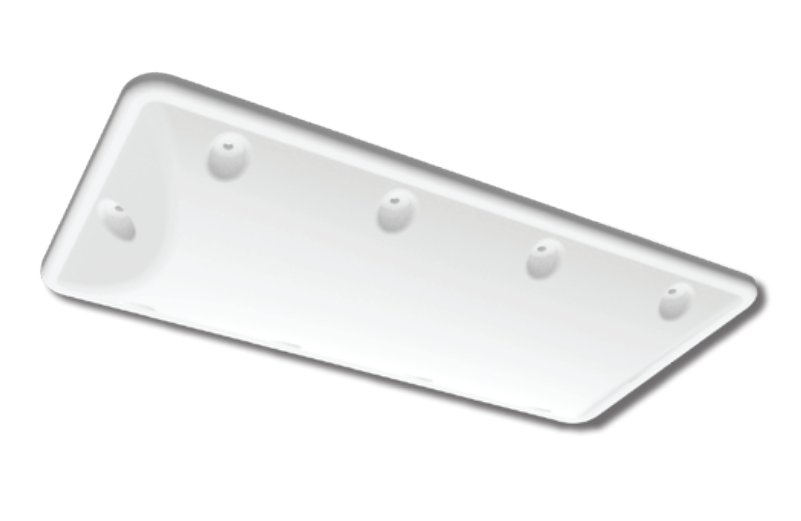

Shat-R-Shield Ironclad GDL General-Duty Linear LED Light

The Shat-R-Shield Ironclad GDL is a general-duty linear LED fixture designed primarily for larger areas in correctional and behavioral applications. Its extreme low-profile, compact housing is made to withstand abuse and features a rimless edge for a rugged lighting solution.

• Construction & Safety Features:
  • Anchored flush onto ceiling with 10 spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners
  • Extreme durability - hammer & knife tested
  • No areas to hide or conceal contraband
  • Wet location rated
  • No accessible parts or hinges
  • Hard wired directly to AC current, eliminating failure points via a driver
• Features:
  • Wattage: 40W or 80W
  • CCT: 3000K, 4000K or 5000K
  • Count/Night Light: Available
  • Voltage: 120-277V
  • Mount Type: Center Mount (CM), with optional pendant mount
  • Lens Type: Polycarbonate (PC)
  • Optional accessories: 14ga Corner Box Kit, 14ga Surface Box Kit, Pendant Mount, Spike Anchors, Tamperproof Bolts/Inserts, Cinder Block Fasteners, Hammer Drive, Metal Ceiling Screws, Whips, Downlight Boxes and Corrugated Plate
• Fixture Construction:
  • Lens - Highly impact-resistant 1/4” thick polycarbonate with a minimum IK10 impact rating
  • Aluminum heat sink to maintain thermal management
• Specifications:
  • Lumens: 4,400-9,100 lm; Count/Night Light: 740 lm
  • Main Light CRI: 80
  • Night Light CRI: 90
  • Light Engine CCT: 3000K, 4000K, 5000K
  • Count/Night Light CCT: 2700K
  • Life Hours: L70 >75,000 hrs; Projected >100,000 hrs
  • Footcandles: 35 ftc at the desk level; 22 ftc at a mounting height of 8 ft
  • Voltage: Universal 120-277V
  • Operating Temperature: -20°C to 45°C

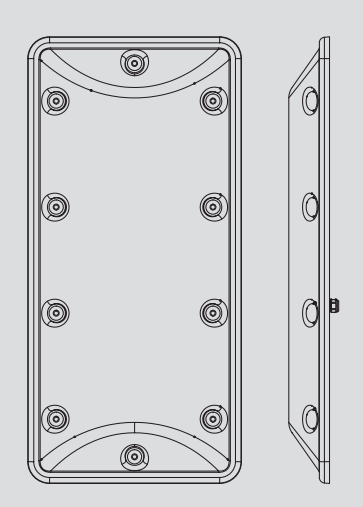

  • Dimensions: 24.25” long x 11.6” wide x 2.2” tall
• Warranty: 5 year limited warranty
• Certifications: cULus, UL Wet Location, IP69K rating for high-temperature/high-pressure washdowns, IK10 Impact Rating
• Buy America Compliant
• Manufactured in America with globally and domestically sourced components

General-Duty Linear Lighting for Correctional and Behavioral Facilities

The Ironclad GDL is designed primarily for larger areas in correctional and behavioral applications. Its extreme low-profile, compact housing is made to withstand abuse and features a rimless edge for a rugged lighting solution.

The GDL uses a highly impact-resistant 1/4-inch polycarbonate lens with a minimum IK10 impact rating, an aluminum heat sink for thermal management, and a design with no accessible parts or hinges. It can be anchored flush onto a ceiling with spike anchors or optional recessed tamper-proof stainless steel bolts or cinder block fasteners, with an optional pendant mount also available.

The GDL is available in 40W and 80W configurations with 3000K, 4000K or 5000K main-light CCT options. Count/night-light configurations use 2700K illumination and provide 740 lumens. The fixture operates on 120-277V and is rated for wet locations and IP69K high-temperature/high-pressure washdowns.

The GDL is part of Shat-R-Shield's Ironclad General Duty Linear product line. Explore our complete selection of Correctional & Detention Facility Lighting for additional correctional lighting, exit signs and emergency lighting products.

For higher-abuse large-area applications, see the Shat-R-Shield Linear Pro Heavy-Duty Large-Area Light.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for correctional, institutional, industrial and other demanding environments. Its Ironclad line includes durable, tamper-resistant and high-abuse lighting for correctional cells, showers, common areas, utility spaces and other secure-facility applications.
