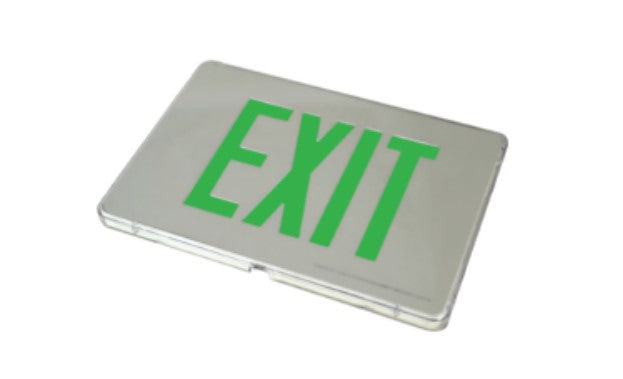

Shat-R-Shield Ironclad RZ Slim LED Exit Sign

The Shat-R-Shield Ironclad RZ is an ultra-slim LED exit sign designed for low-profile installation in correctional and institutional facilities. Its 5/8-inch die-cast aluminum housing uses just 2 watts and can be wall-, canopy- or pendant-mounted, with an optional polycarbonate security cover for vandal-resistant applications.

• Construction:
  • 5/8” die cast aluminum housing, available in Fine Grain, Brushed Aluminum, White or Black finishes
  • Single injection-molded frame assembly
  • Mounts to standard 4S junction box in Wall, Canopy or Pendant mount configurations
  • Snap-fit housing design eliminates unsightly hardware
  • Removable face with field-selectable Chevron directional indicators
  • Low-profile canopy for end or top mount applications
  • 1/2” square extruded aluminum tube pendant with matching adaptors
  • Optional polycarbonate security cover
  • Optional polycarbonate face shield with snap-fit installation, ideal for vandal-resistant and low-level applications (U.L. listed for floor proximity installation)
  • Also available with an additional remote powered sign
  • Available options include self-diagnostics, remote testing, damp-location configurations, face shields, remote-powered signs, custom finishes, and more.
• Electrical:
  • 2W power consumption for both single and double face AC models
  • Battery backup models consume just 2.4 watts
  • Solid-state circuitry powers the LEDs at less than 50% of their rated operating current, ensuring minimal heat dissipation and supporting exceptional LED life, with performance predicated to maintain 80% luminosity after 20 years of continuous operation
  • Optional self-diagnostic battery monitoring on all EM models
  • Optional self-compensating constant-current charger monitors battery condition and indicates via a flashing LED when the battery needs replacing
  • 120 or 277 VAC field-selectable input
  • Circuitry includes zero-current LVCO, brownout sensing and line-latch
  • Optional functions: Self-Test, Self-Diagnostics, Fire Alarm Interface, Flash in Emergency Mode or Continuous Flash in AC mode, Infrared Remote Testing up to 40 feet away, Dual AC Input and 2W Remote Lamp Head Capacity
  • Premium high-temperature, maintenance-free Nickel Metal Hydride battery with fuse protection
  • Standard battery backup models are U.L. listed with 240 minutes of emergency run time; remote lamp head rated models are U.L. listed for 90 minutes of emergency run time
• Illumination:
  • Unique injection-molded 3mm refractive light guide produces flawless uniformity and an 18fL illuminated legend, 7 times the minimum UL 924 requirement at a 100-foot viewing distance
  • Red or Green LED with 6” letters and 3/4” stroke
  • Maintenance-free LED light source with 25+ year’s life expectancy
• Certifications:
  • cULus, IK10, UL Damp Location
  • Tested and listed by Underwriters Laboratories in compliance with UL 924 and CSA-C22.2 No. 141-15; meets or exceeds performance standards required by NFPA 101 Life Safety Code, NFPA 70-NEC and OSHA
  • California Energy Commission (CEC) Title 20 Compliant
• Warranty: 5-year limited warranty

LED Exit Lighting for Correctional & Institutional Facilities

The Ironclad RZ combines a low-profile 5/8-inch housing with flexible mounting and energy-efficient LED illumination for facilities where a less obtrusive exit sign is preferred. Wall, canopy and pendant mounting options allow the RZ to be adapted to a variety of corridors, common areas and other egress locations.

For correctional, detention and other applications where additional protection is required, an optional polycarbonate security cover provides added resistance to vandalism and impact. The RZ is available with red or green illumination, single- or double-face configurations, battery backup and a range of self-test, diagnostic and emergency-control options.

The RZ consumes just 2 watts in standard AC configurations and provides 18fL illumination, which is 7 times the minimum UL 924 requirement at a 100-foot viewing distance.

For a more rugged heavy-duty correctional exit sign, consider the Shat-R-Shield Ironclad SDI Correctional Exit.

Explore our complete selection of Correctional & Detention Facility Lighting for additional exit signs, emergency lighting and secure-facility fixtures.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for correctional, institutional and other demanding environments. Its Ironclad product family includes durable lighting solutions for correctional cells, common areas, exit and emergency applications and other secure-facility environments.
