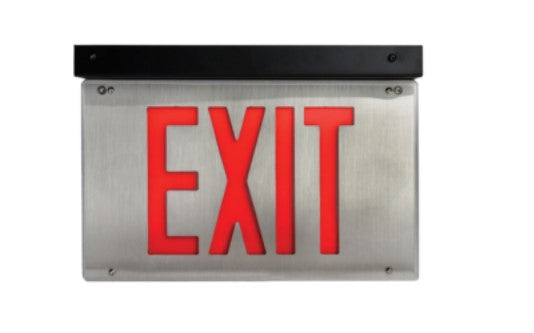

Shat-R-Shield Ironclad SDI Correctional LED Exit Sign

The Shat-R-Shield Ironclad SDI is a rugged LED exit sign designed for correctional, detention and institutional facilities. Its die-cast aluminum housing, 1/8-inch polycarbonate security faceplate, tamper-resistant access screws and secure mounting options help protect the sign from impact, unauthorized access and damage in demanding secure environments.

• Construction:
  • Die-cast aluminum housing with a minimum wall thickness of 0.08", with a 1/8" thick beveled-edge polycarbonate security cover over each stencil face
  • Long-life silicone gasket provides an IP66 wet-location rating and meets NEMA 4X requirements
  • Polycarbonate security faceplate provides impact resistance to the stencil face
  • Security cover and hinged faceplate are secured and locked with tamper-resistant stainless steel screws
  • Injection-molded internal cavity reflector provides ease of installation and maintenance with even legend illumination

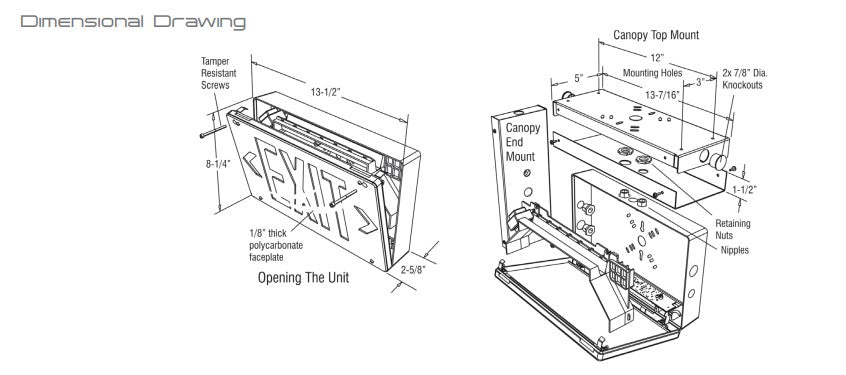

  • Ceiling or end-wall mounting installations use an oversized canopy with fixing points over a larger surface area for more secure mounting
  • Canopy attaches to the sign with two die-cast 3/8" nipples and lock nuts and is suitable for conduit entry
  • Fine-grain brushed aluminum stencil face is standard; other finishes are available
  • Full-size 100-foot viewing distance with field-selectable Chevron indicators
  • Hidden knockout access points and universal mounting pattern
  • Available options include self-diagnostics, infrared remote testing, damp-location configurations, flasher, fire alarm interface, face shield, recessing frame, custom finishes, and more.
• Electrical:
  • Maintenance-free LED light source with 25+ years life expectancy
  • Battery backup models consume just 2.5 watts with a 0.77 power factor
  • 4-hour battery backup runtime with a premium long-life, high-temperature fused nickel-cadmium battery pack
  • 120 or 277 VAC field-selectable input with quick-install push-wire connectors
  • Circuitry includes zero-current LVCO, brownout sensing and Line-Latch
  • Self-diagnostic battery monitoring on all EM models
  • Electronic control circuit applies full-wave, low-ripple current to each LED to optimize life and light output. A diagnostic, self-compensating constant-current charger monitors the battery pack and indicates via a flashing LED when the battery needs replacing
  • Remote capable of powering a remote exit sign only
• Illumination:
  • High-intensity LED array provides energy-efficient illumination with just 1-watt power consumption for both single- and double-face AC models
  • Vivid legend illumination is approximately 4 times the minimum UL 924 requirement
  • Spectrally matched diffuser provides superior visual brightness and uniformity
• Certifications:
  • UL Listed to UL 924; meets NFPA 101 Life Safety Code, NFPA 70-NEC and OSHA requirements
  • IP66 wet-location rating and NEMA 4X requirements
  • California Energy Commission (CEC) Title 20 Compliant
  • Buy America Act (BAA) compliant
• Warranty: 5-year limited warranty

Correctional Exit Lighting for Secure Facilities

The Ironclad SDI Correctional Exit is designed for correctional, detention and institutional facilities where an exit sign may be exposed to impact, tampering or unauthorized access. Its rugged die-cast aluminum housing, polycarbonate security faceplate and tamper-resistant hardware provide added protection for demanding secure environments.

The SDI is available in single- or double-face configurations with red or green face colors, back-mount or canopy-mount configurations, and optional battery backup. EM models include self-diagnostic battery monitoring for facilities requiring emergency operation.

The SDI uses a high-intensity LED array with approximately 4 times the minimum UL 924 illumination requirement. Its IP66 wet-location rating and NEMA 4X construction make it suitable for demanding environments where protection from water and other environmental exposure is required.

Optional configurations include flashing, fire alarm interface, two-circuit input and damp-location options. The fixture is also available with other finishes beyond the standard fine-grain brushed aluminum stencil face.
