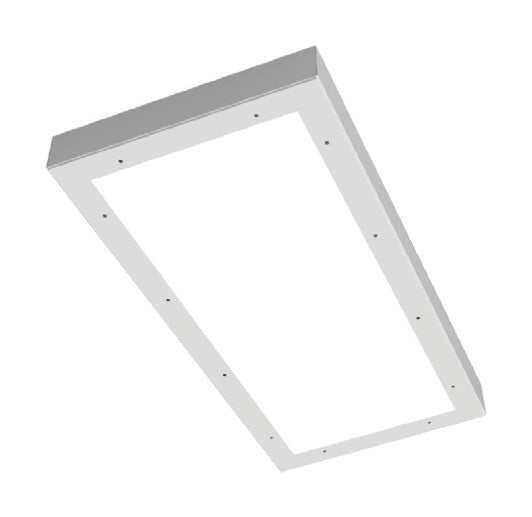

Shat-R-Shield SB Series Correctional-Grade LED Surface Mount Light

The Shat-R-Shield SB Series is a correctional-grade LED surface-mount fixture designed for maximum-security, detention and behavioral health environments. Its low-profile, ligature-resistant and tamper-resistant construction provides durable illumination for high-abuse areas where occupant safety, fixture security and resistance to unauthorized access are important.

• Features:
  • Available sizes: 1' x 1', 1' x 2', 1' x 4', 2' x 2', and 2' x 4'
  • Wattage: 12W, 25W, 43W, 68W, 75W, 81W, 93W, 100W, 125W, 156W, or 187W nominal configurations
  • CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
  • Installation: Ceiling surface mount
  • Voltage: 120/277VAC, 50/60Hz; 347-480VAC option (HVS)
  • Housing: Cold rolled steel or stainless steel enclosure
  • Finish: Brushed, White, or Antimicrobial White
  • CRI: ≥82 standard; optional 90 CRI
  • Ligature-resistant design with stainless steel tamper-resistant T25 Torx hardware
• Options:
  • 14W integral battery backup for continued illumination during power loss (BB)
  • Allen head screws with center pin: Stainless (AH) or White (AHW)
  • LED Night Light (LN)
  • Wet Location / IP65 sealed construction (WL)
  • High color-rendering LEDs, ≥90 CRI (90)
  • Integral microwave sensor for automatic occupancy control (SC)
• Fixture construction:
  • Cold rolled steel or stainless steel enclosure
  • Die-formed, TIG and spot welded construction
  • Durable TGIC polyester powder coating with 5-stage pre-treatment for adhesion and corrosion protection
  • Tested to 1,000 hours salt spray with 92% reflectance
  • Optional inner diffused lens for uniform LED diffusion
  • Outer polycarbonate or glass lens
  • Lens secured using through studs and vertically adjustable cold rolled steel internal hold-downs
• Specifications:
  • Lumen packages: 2,000 to 30,000 lumens
  • Efficacy: Up to 165 lumens per watt
  • Light source: 2700K, 3000K, 3500K, 4000K, or 5000K CCT
  • CRI: ≥82; optional 90 CRI
  • LED Life: L70 >100,000 hours
  • Voltage: Universal 120/277VAC, 50/60Hz
  • 347-480VAC option
  • Dimming: 0-10V
  • Power Factor: ≥0.90
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • Sizes: 1' x 1', 1' x 2', 1' x 4', 2' x 2', and 2' x 4'
• Warranty: Five Year Warranty (Terms and Conditions Apply)
• Certifications and compliance: cETL Listed for Damp Locations, optional Wet Location, IK07, Buy American Act compliant, and Build America, Buy America Act compliant
• Manufactured in America with globally and domestically sourced components

Correctional-Grade Surface-Mount Lighting for High-Abuse Areas

The SB Series is designed for maximum-security, correctional and behavioral health environments where conventional commercial fixtures may not provide the level of security, durability or ligature resistance required. Its low-profile surface-mount design makes it suitable for a wide range of secure-facility applications without requiring a recessed ceiling installation.

Typical applications include correctional cells, dayrooms, cafeterias, restrooms, showers, corridors, sally ports, indoor recreation areas and behavioral health environments. Multiple fixture sizes and lumen packages allow the SB Series to be specified for spaces ranging from individual rooms to larger common areas.

Available configurations include cold-rolled or stainless-steel construction, optional wet-location/IP65 protection, night-light capability and multiple color temperatures and light-output levels.

Explore our complete selection of Correctional & Detention Facility Lighting for additional cell, shower, common-area and secure-facility lighting options.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for correctional, institutional and other demanding environments. Its Ironclad product family includes durable, tamper-resistant and high-abuse lighting solutions for correctional cells, showers, common areas and other secure-facility applications.
