Shat-R-Shield Ironclad WDHB Wash Down High Bay LED Light

Shat-R-Shield Ironclad WDHB Wash Down High Bay LED Light

NSF-Rated IP69K High-Bay Light for Washdown and Harsh Environments

  • Shat-R-Shield Lighting Ironclad WDHB Tamper-Resistant Wash Down High Bay LED Area/Task Light for Correctional Facilities
  • Shat-R-Shield Ironclad WDHB Wash Down High Bay LED Light
  • Shat-R-Shield Ironclad WDHB Wash Down High Bay LED Light
  • Shat-R-Shield Ironclad WDHB Wash Down High Bay LED Light
1 4

SKU: S700110

$629.90
$629.90
Sale Sold out
  • Shipping Eligible for FREE Shipping on Orders over $75
  • Non Returnable This item is non-cancellable and non-returnable
View full details

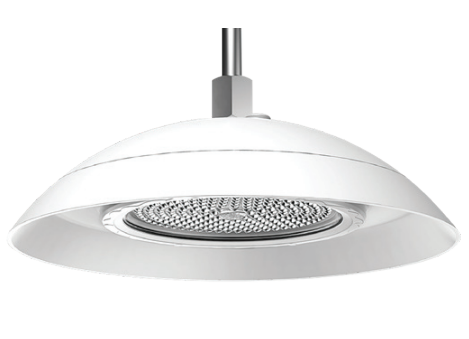

The Shat-R-Shield Ironclad WDHB is a high-performance NSF-rated LED wash down high bay designed for harsh environments and applications requiring frequent high-temperature, high-pressure hose downs. Its corrosion-resistant IP69K housing and shatter-resistant, high-impact polycarbonate lens make it well suited for food processing and other demanding environments.

  • Specifications:
    • Wattage: Selectable 200W, 150W, 100W, or 60W
    • Nominal Lumens: 23,000 / 17,500 / 12,000 / 8,100 lm (200W / 150W / 100W / 60W)
    • Color Temperature: Selectable 4000K or 5000K
    • CRI: 80
    • Beam Angles: 50° or 120°
    • Voltage: 120-277V
    • Power Factor: >0.95
    • Surge Protection: 6kV line-line, 10kV line-earth
    • THD: 20% Max
    • Efficacy: 135 LPW
    • LED Life: L90 >100,000 hours
    • Operating Temperature: -22°F to 122°F (-30°C to 50°C)
    • Weight: 16 lbs.
    • Dimensions: Approximately 19.25" diameter; height varies by mounting option: 7.88" with eye bolt, 7.16" with surface mount, or 7.53" with 3/4" NPT adapter
    • Mounting: Eye bolt, surface mount, or pendant
  • Fixture Construction:
    • Fixtures come standard with 6' whip
    • Shatter-resistant, high-impact polycarbonate lens
    • IP69K housing with WF2 corrosion-resistant epoxy resin coating
    • Designed for applications requiring frequent hose downs with high temperatures and high pressures
    • Enclosed design with no direct exposure to screws helps prevent harmful buildup of bacteria
  • Warranty: 5 year limited warranty
  • Certifications: cULus, DLC, NSF, RoHS, IK10, NEMA 4, NEMA 4X, NEMA 5, IP69K, IP66

IP69K Wash Down High-Bay Lighting for Harsh Environments

The Ironclad WDHB is designed for high-ceiling applications where powerful illumination must be combined with resistance to moisture, dust, corrosion and frequent washdown. Its IP69K-rated housing is designed for applications requiring high-temperature, high-pressure hose downs, while the shatter-resistant polycarbonate lens provides added impact protection.

Selectable wattage and color temperature allow the WDHB to be configured for different lighting requirements, while 50° and 120° beam angles provide options for focused or wider-area illumination. The manufacturer specifically positions the WDHB for food-processing applications and describes the 200W setting as exceeding the lumen output of a 400W HID equivalent.

The WDHB is available with eye bolt, surface and pendant mounting options and includes a standard 6' whip. Its NSF, DLC, IP69K, IP66 and NEMA ratings provide documented environmental and application-related performance for demanding washdown environments.

Explore our complete selection of Industrial & Commercial Lighting for additional high-bay, linear, washdown and harsh-environment lighting options.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for industrial, institutional, correctional and other demanding environments. Its Ironclad line includes durable lighting solutions for wet, washdown, corrosive, high-abuse and other challenging applications.
