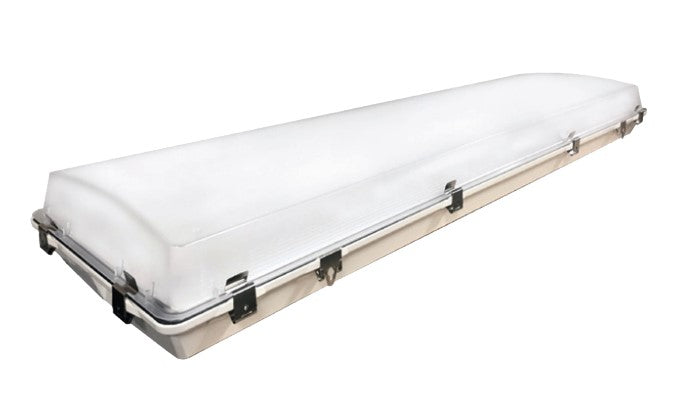

Shat-R-Shield Ironclad VTHB Vapor Tight High Bay LED Light

The Shat-R-Shield Ironclad VTHB is a vapor-tight LED high bay designed for wet, dusty and other harsh environments that may require frequent washdown. Its rugged non-metallic construction, tethered lens and high lumen output provide durable, energy-efficient lighting for industrial, institutional and other demanding high-ceiling applications.

• Housing Construction
  • Rugged Non-Metallic Construction - Built with fiberglass reinforced polycarbonate material with seamless gasket seal and paired with stainless steel components for optimal chemical and impact resistance
  • Built for Performance - Rounded edges allow for easy water shed and durability against high-pressure hose down
  • Light Distribution - Tethered lens available in clear or frosted for uniform, glare-free illumination. Beam Angles: Frosted Lens: 108°, Clear Lens: 115°
  • Customizable - Available in a variety of lumen outputs and voltage options with multiple mounting configurations
  • Battery Backup - Provides lighting for 90 minutes
• Specifications:
  • Wattage: 75W, 158W, 236W
  • Voltage: 120-277V; 347-480V
  • Lumens: 10,250-35,570 depending on wattage, CCT and lens configuration
  • CRI: 80
  • CCT: 4000K & 5000K
  • 0-10V Dimming & options for Battery Backup
  • Power Factor > 0.9
  • L70 > 72,000 Hours
  • Operating Temperature: 120-277V: -40°F to 131°F (-40°C to 55°C); 347-480V: -40°F to 122°F (-40°C to 50°C); 32°F to 95°F with Battery Backup
  • Fixture Dimensions: 52”L x 14.5”W x 6”H
  • Warranty: 5 year limited warranty

• Certifications: cULus, RoHS, NSF, UL Wet Location, NEMA 4X, NEMA 5, UL1598A, IP67
• Additional configurations including battery backup, occupancy sensor, mounting hardware and power whips are available. Please contact us for assistance selecting the correct configuration.

Vapor-Tight High-Bay Lighting for Wet and Harsh Environments

The Ironclad VTHB is designed as a replacement for fluorescent fixtures commonly used in high-ceiling applications exposed to moisture, dust, washdown or other demanding environmental conditions. Its seamless gasket seal and non-metallic construction make it well suited for facilities where durability and environmental protection are important considerations.

With multiple lumen outputs, voltage options and mounting configurations, the VTHB can be configured for a range of high-ceiling applications. Available clear and frosted lenses provide different light-distribution options.

The VTHB carries IP67, NEMA 4X, NEMA 5, NSF and UL Wet Location ratings and is available with emergency battery backup for applicable configurations. Explore our complete selection of Industrial & Commercial Lighting for additional high-bay, linear, washdown and harsh-environment lighting options.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for industrial, institutional, correctional and other demanding environments. Its Ironclad line includes durable lighting solutions for wet, washdown, corrosive, high-abuse and other challenging applications.
