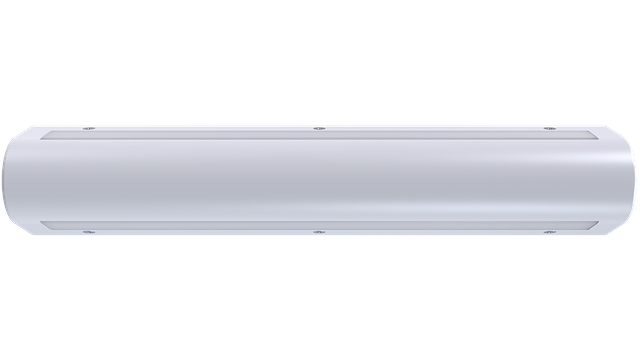

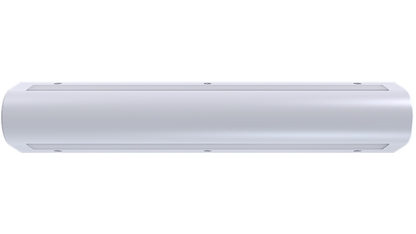

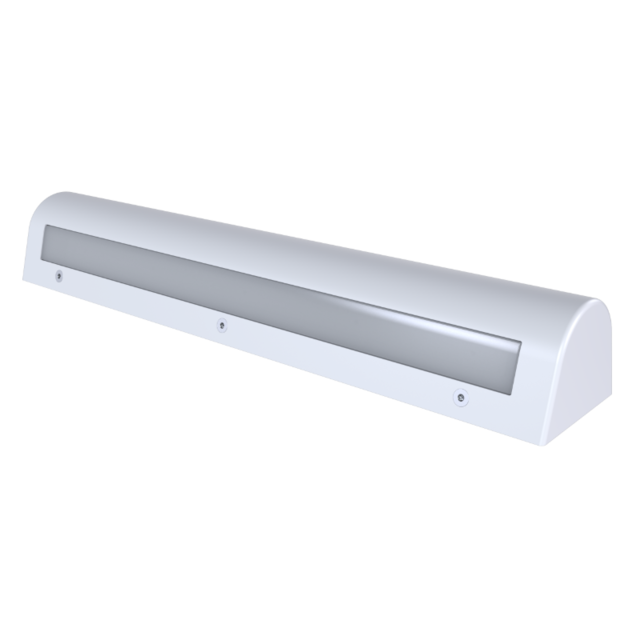

Shat-R-Shield Ironclad UDF Up/Down Correctional LED Light

The Shat-R-Shield Ironclad UDF is a heavy-duty, wall-mounted LED fixture designed to provide indirect up-and-down illumination in correctional cells and other secure environments. Its rugged steel construction, impact-resistant lens and tamper-resistant design help resist abuse, attempted removal and access to fixture components

• Features:
  • Wattage and CCT:
    • Wattage selectable to 42W-High, 32W-Med, 24W-Low (SK) / CCT selectable to 3500K-Warm White, 4000K-Natural White, 5000K-Cool White

    • 40W / CCT - Circadian Rhythm Wireless Control
  • Mount Type: Center

  • Voltage: 120-277V or with External Battery Backup
  • Frame Material: White Powder Coat
  • Lens: Frosted Polycarbonate
• Options:
  • Circadian Rhythm option includes full wireless control such as CCT, Power, On/Off, dimming, Circadian Rhythm and scheduling selection to all networked fixtures via a mesh network
  • Push Button Switch option is tamper proof and IP65 rated
  • Count/night light option
  • Accessories (additional charges may apply): tapcon concrete screws,  cinderblock fasteners, metal ceiling screws, 1' WIP, 2' WIP, sample WIP, sample WIP + sample hardware, push button switch on one or both sides
• Fixture construction:

  • Lens - 0.25" Polycarbonate
  • Extreme Durability - hammer & knife tested

  • Secure installation with no accessible parts or hinges
  • IK10 impact resistance
• Specifications:

  • Lumens: 2800-4500 lm (polycarbonate lens), 2500-4200 lm (urethane lens)

  • CCT: 3500K-Warm White, 4000K-Natural White, 5000K-Cool White

  • Life Hours: L70>75,000 Hours; Projected >100,000 Hours

  • Voltage: Universal 120-277V
  • Dimming: 0-10V (STD)
  • Dimensions: 25.9” x 4.9” x 3.7”

• Warranty: 5 year limited warranty

• Certifications: IK10 Impact Rating, cULus, UL Damp Location
• Manufactured in America with globally and domestically sourced components

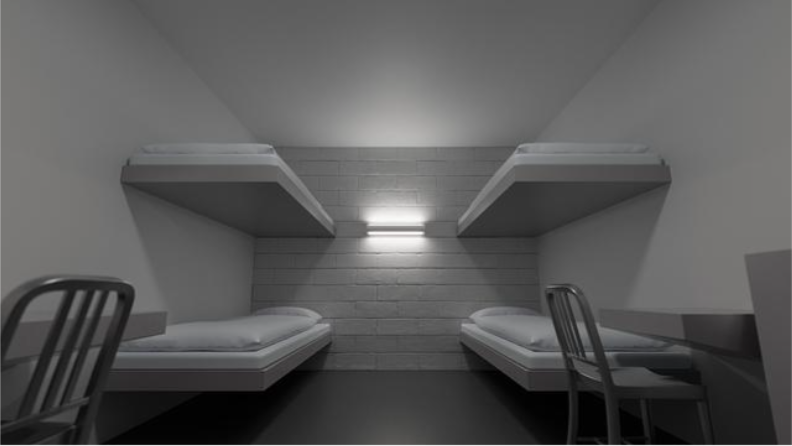

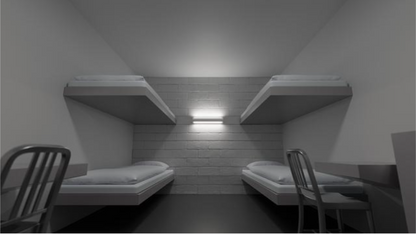

Up/Down Wall Lighting for Correctional Cells

The Ironclad UDF is designed for correctional and detention environments where wall-mounted lighting is preferred and direct front-facing light should be minimized. Installed at approximately eye level, the fixture directs light upward and downward to illuminate the room while reducing direct light toward the occupant.

Its heavy-duty steel housing, impact-resistant lens and secure construction are designed to resist abuse, tampering and attempted removal in demanding correctional environments. Field-selectable wattage and color temperature allow the installer to adjust light output to facility requirements.

Available options include circadian-rhythm controls, count/night lighting and tamper-resistant push-button switching for facilities that require additional control or operational flexibility.

The UDF is part of Shat-R-Shield’s Ironclad Heavy Duty Series for demanding correctional and institutional applications.  Explore our complete selection of Correctional & Detention Facility Lighting for additional cell, shower, common-area and high-abuse lighting options.

For heavy-duty cell lighting in a flush-mounted fixture format, see the Shat-R-Shield Ironclad VR Pro.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for correctional, institutional and other demanding environments. Its Ironclad line includes durable, tamper-resistant and high-abuse lighting for correctional cells, showers, common areas, utility spaces and other secure-facility applications.

Explore more Shat-R-Shield Lighting available from Anchortex.
