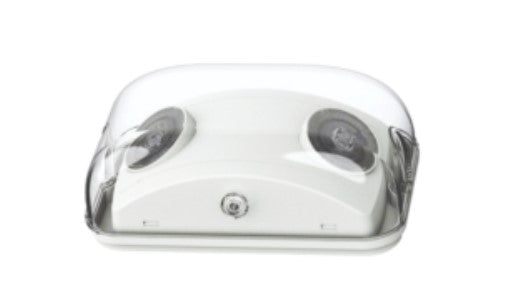

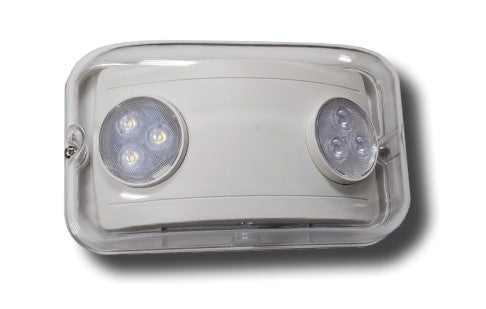

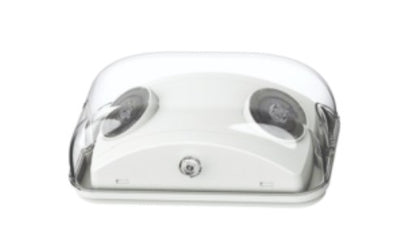

Shat-R-Shield Ironclad SRSEM LED Emergency Light

The Shat-R-Shield Ironclad SRSEM is a low-profile LED emergency light designed for correctional, institutional and other demanding interior applications. Two fully adjustable 2-watt LED heads provide emergency illumination, while battery backup, high-impact construction and an IK10 rating support reliable performance when normal facility power is interrupted.

• Construction:
  • Compact low-profile contemporary design with an injection-molded, high-impact thermoplastic housing in a white finish
  • Knock out mounting pattern on back plate and top conduit entry provides quick installation
  • Snap-fit housing suitable for Wall or Ceiling mount
  • Combined momentary test switch and AC status indicator provided for ease of testing
  • Available with a clear vandal-resistant cover
• Power Source:
  • Maintenance free sealed Nickel Cadmium (TCL2) or Nickel Metal Hydride batteries (TCL4) operating temperature range 10°C to 40°C
  • Remote capability with TCL4 can power two 1-watt LED lamp heads, or be used for longer run time
  • Optional Self-Diagnostics (SD)
  • Field selectable 120 or 277 VAC 60 HZ
  • Line-latch prevents unnecessary discharge of battery during installation, loads will not illuminate until after application of utility power
  • Low voltage cut-off prevents battery damage and ensures positive charge acceptance following an extended discharge
  • Brownout sensing assures emergency operation during periods of low line voltage
  • Fully automatic, solid state, two-rate charger will recharge battery per UL 924 requirements
  • Damp location environmentally coated circuitry provided as standard
• Illumination:
  • Two fully adjustable High Brightness 2 watt LED Heads each producing 125 lumens for optimum spacing and distribution
  • Optional single or double, indoor or outdoor remote heads are available, with 3.6 volt 1 watt LEDs
  • LED life: Up to 100,000 hours
• Certifications: cULus, UL Damp Location, IK10, UL 924 Listed; meets NFPA 101 Life Safety Code, NFPA 70-NEC, and OSHA requirements
• Buy America Compliant
• Warranty: 3 year limited warranty

LED Emergency Lighting for Correctional & Institutional Facilities

The Ironclad SRSEM impact-resistant emergency lighting provides battery-backed emergency illumination for correctional, detention, institutional and other facility interiors where dependable lighting is required during a loss of normal power. Its compact, low-profile housing can be wall- or ceiling-mounted, while two fully adjustable LED heads allow light to be directed where emergency illumination is needed.

Each 2-watt LED head produces 125 lumens, and the fixture is available with nickel-cadmium or nickel-metal-hydride battery configurations. Options include self-diagnostics and single or double indoor and outdoor remote lamp heads for facilities requiring additional emergency-lighting coverage.

The SRSEM is UL 924 listed and meets NFPA 101 Life Safety Code, NFPA 70-NEC and OSHA requirements, and is IK10 impact resistant.

For illuminated exit signage, see the Shat-R-Shield Ironclad SDI, RZ, or Zero-Watt INH Series exit signs.

Explore our complete selection of Correctional & Detention Facility Lighting for additional exit signs, emergency lights and secure-facility lighting.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized lighting for correctional, institutional and other demanding environments. Its Ironclad product family includes durable emergency lighting, exit signs and other lighting solutions designed for secure and high-abuse facilities.
