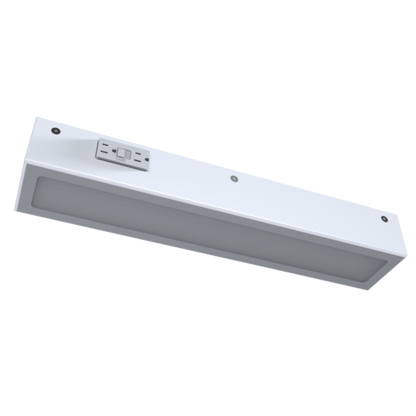

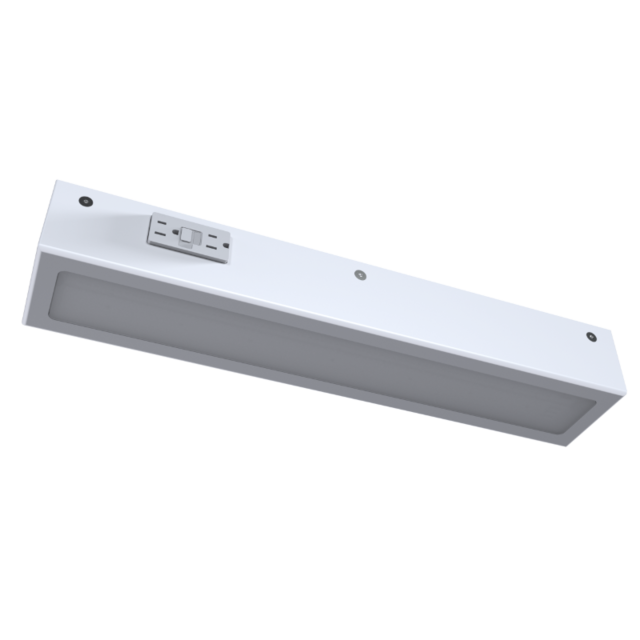

Shat-R-Shield Ironclad SlimLin Correctional LED Light Fixture

The Shat-R-Shield Ironclad SlimLin is a compact general-duty linear LED fixture designed for correctional cells and other secure areas where installation space is limited. Its heavy-gauge steel construction, impact-resistant lens and tamper-resistant design provide durable lighting for monitored correctional and institutional environments.

• Features:
  • Wattage: Selectable to 42W-High, 32W-Med, 24W-Low (SK)
  • CCT: Selectable to 3500K-Warm White, 4000K-Natural White, 5000K-Cool White
  • Mount Type: Center

  • Voltage: 120V or 120-277V
  • Frame Material: White Powder Coat
  • Lens: Frosted Polycarbonate or Clear Texture Polycarbonate

• Options:
  • Count/night light option
  • Accessories (additional charges may apply): tapcon concrete screws,  cinderblock fasteners, metal ceiling screws, 1' WIP, 2' WIP, sample WIP, sample WIP + sample hardware, on/off switch and/or GFCI socket on left or right hand side
• Fixture construction:

  • Lens - 0.25” Polycarbonate
  • Extreme Durability - hammer & knife tested

  • Secure installation with no accessible parts or hinges
  • IK10 impact resistance
  • On/Off Switch option: Tamper proof and IP65 rated

• Specifications:

  • Lumens: 1000-4850 lm

  • CCT: 3500K-Warm White, 4000K-Natural White, 5000K-Cool White

  • Life Hours: L70>75,000 Hours; Projected >100,000 Hours

  • Voltage: Universal 120-277V
  • Dimming: 0-10V (STD)
  • Dimensions: 3” x 4” x 21”

• Warranty: 5 year limited warranty

• Certifications: IK10 Impact Rating, cULus, UL Damp Location
• Manufactured in America with globally and domestically sourced components

Compact Correctional Cell Lighting for Tight Spaces

The SlimLin is designed for correctional and institutional applications where available mounting space is limited but resistance to impact and tampering is still important. Its narrow 3-inch-by-4-inch profile makes it particularly useful for prison cells, detention cells and other monitored secure areas where a larger correctional light fixture may be difficult to install.

The fixture combines heavy-gauge steel construction, an impact-resistant polycarbonate lens and secure mounting with selectable wattage and color temperature. An optional count/night light and additional switch, outlet and mounting configurations allow the fixture to be adapted to different facility requirements.

For higher-abuse cell applications, consider the Shat-R-Shield Ironclad VR Pro.  The SlimLin is part of Shat-R-Shield's Ironclad General Duty Series for monitored, high-traffic correctional and institutional environments.  Explore our complete selection of Correctional & Detention Facility Lighting for additional cell, shower, common-area and facility lighting options.

About Shat-R-Shield Lighting
Shat-R-Shield manufactures specialized LED lighting for correctional, institutional, industrial and other demanding environments. Its Ironclad line includes durable, tamper-resistant and high-abuse lighting for correctional cells, showers, common areas, utility spaces and other secure-facility applications.
