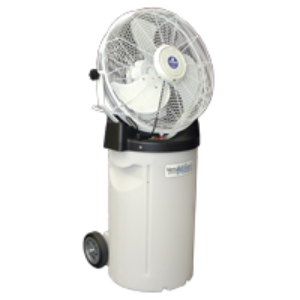

Schaefer VersaMist PVM18C Portable Low Pressure Misting Fan

Schaefer VersaMist PVM18C Portable Low Pressure Misting Fan
SKU: S600979-2
Regular price
Sale price
Regular price
Sold out
Unit price

The VersaMist reduces air temperature by as much as 30°F. Low pressure mist technology combines fine mist and high speed air movement for highly effective “person” cooling indoors and outdoors. The 18”, UL507 rated, 3-speed fan provides up to seven hours of use and is ergonomically designed for portability. The VersaMist is ideal for cooling work areas, rehabilitation stations, outdoor events, emergency workers, patios, and sidelines.

Features of the Schaefer Ventilation VersaMist Portable Low Pressure series of Misting Fans:

  • Produces up to 2600 cfm of cooling breeze
  • Available with or without wheels
  • Wheeled version has integrated handle and wheels for easy movement
  • 10 or 14 gallon built in water reservoir for portability
  • Adjustable fan head for targeted cooling
  • Rapid mist evaporation produces 16,000 BTU/hour (1.4 tons) of cooling
  • Pump and fan assembly separates from the reservoir for quick and effortless set up, cleaning and storage
  • Integral tip switch to turn power off if unit is knocked over
  • 25 foot outdoor rated power cord with integrated GFCI plug for use in standard wall outlet
  • UL507 rated for outdoor use
  • Two year warranty
  • Assembled in the USA

Specific Features of Schaefer model PVM18C 18" Misting Fan:

  • Blade Color:White
  • Blade Material:Aluminum
  • CFM (free air):2200
  • CFM (high):2200
  • CFM (low):1400
  • CFM (medium):1800
  • CFM Calculation Standard:ANSI/AMCA Standard 230-99
  • CFM Range (Free Air):1001 - 2500
  • CFM/Watt (free Air):13
  • Cooling Capacity (1000 btu):16
  • Cord:Included - Wired
  • Cord Length (feet):25
  • Country of Origin:US
  • Diameter (inches):18
  • Distinguishing Feature:Cools Air via Evaporative Cooling
  • Drive Type:Direct
  • Fixed or Portable:Portable
  • Frequency (Hz):60
  • Guard Color:White
  • Guard Material Coating:Powder Coated Steel
  • Guard Spacing (inches):1/2 OSHA
  • Housing Color:White
  • Nameplate Amps:1.45
  • Number of Wings:3
  • On Board Reservoir:Yes
  • Operating Temperature (high):40C
  • Operating Temperature (low):0C
  • Oscillating:No
  • Schaefer Performance Test No.:644
  • Phase:1
  • Power (hp):1/4
  • Power (Voltage Phase):115 Single Phase
  • Product Certifications:cULus
  • Product Color:White
  • Product Weight (pounds):47
  • Speed Control Compatible:No
  • Speeds:3
  • Switch:On product
  • Voltage:115
  • Able to Ship Small Parcel:Yes
  • Product Shipping Dimensions:(FAN) 22 X 22 X 26 / (TANK) 24 X 19 X 15

About Schaefer Ventilation Equipment:
Schaefer Ventilation, a division of Pinnacle Climate Technologies, is a leading manufacturer of high quality climate control systems for a wide range of commercial, industrial, and agricultural applications. Schaefer Ventilation Equipment is best known for making top quality air circulation fans, portable cooling fans, portable air conditioners, confined space ventilators, exhaust shutter fans, evaporative cooling and misting systems, electric and gas indoor and outdoor radiant heaters, fixed and portable heaters.
