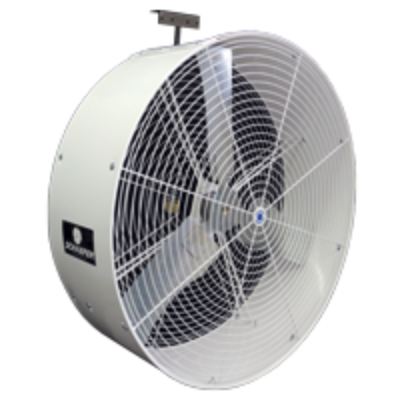

Schaefer Versa-Kool VK42-3 42" Circulation Fan

MPN:
Schaefer Versa-Kool VK42-3 42" Circulation Fan
SKU: S601557
Regular price
$669.90
Sale price
$669.90
Regular price
Sold out
Unit price
per

Reduce heat stress and improve air quality with Schaefer's Versa-Kool deep guard circulation fans. These fans are engineered to produce greater air movement and superior cooling with less noise. Also known as Horizontal Air Flow (HAF) fans, these fans move air in a coherent horizontal pattern creating the gentle 'racetrack' air flow pattern needed in greenhouses, hydroponics garden centers, and other agricultural applications to maximize heat distribution and humidity control by mixing the air, from ceiling to floor.

Features of the Schaefer Ventilation Versa-Kool series of Deep Guard Circulation Fans:

  • Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow
  • Matched high quality motors and blades for maximum efficiency
  • Powder coated steel guards for increased durability and corrosion resistance
  • Powder coated steel mounting bracket and power cord included
  • Wide variety of mounting options available for flexible and easy installation
  • Variable speed controls available
  • Misting kits available for even greater cooling
  • Two year warranty
  • Made in the USA

Specific Features of Schaefer model VK42-3 42" Versa-Kool Circulation Fan:

  • Air Velocity (@ 5 times diameter):720
  • BESS Lab Performance Test No.:13211
  • Blade Color:Gray
  • Blade Material:Galvanized Steel
  • CFM (free air):13970
  • CFM Calculation Standard:ANSI/AMCA Standard 230-99
  • CFM Range (Free Air):10001 - 15000
  • CFM/Watt (free Air):29.2
  • Component Certifications:Motor - UL/CSA
  • Cord:Not included
  • Country of Origin:US
  • Diameter (inches):42
  • Drive Type:Direct
  • Fixed or Portable:Fixed
  • Frequency (Hz):60
  • Guard Color:White
  • Guard Material Coating:Powder Coated Steel
  • Guard Spacing (inches):1/2 - 1 UL507
  • Housing Color:White
  • Housing Material:Polyethylene
  • Nameplate Amps:2.3/1.2
  • Number of Wings:3
  • Oscillating:No
  • Phase:3
  • Power (hp):1/2
  • Power (Voltage Phase):230/460 Three Phase
  • Product Color:White
  • Product Weight (pounds):75
  • Speed Control Compatible:No
  • Speeds:1
  • Switch:Not included
  • VFD Compatible:No
  • Voltage:230/460

About Schaefer Ventilation Equipment:
Schaefer Ventilation, a division of Pinnacle Climate Technologies, is a leading manufacturer of high quality climate control systems for a wide range of commercial, industrial, and agricultural applications. Schaefer Ventilation Equipment is best known for making top quality air circulation fans, portable cooling fans, portable air conditioners, confined space ventilators, exhaust shutter fans, evaporative cooling and misting systems, electric and gas indoor and outdoor radiant heaters, fixed and portable heaters.

Shipping Shipping cost TBD - Contact Us For Freight Quote

Schaefer Ventilation Equipment VK42-3
