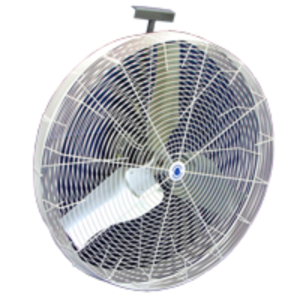

Schaefer 36DF 36" Direct Flow Circulation Fan

Schaefer 36DF 36" Direct Flow Circulation Fan
SKU: S601560
Regular price
Sale price
Regular price
Sold out
Unit price

Direct flow circulation fans feature very high airflow with a narrow airflow pattern to deliver high volumes of fast moving air to cool cows and other animals. Ships fully assembled, available unassembled for high packing density and low shipping cost.

Features of the Schaefer Ventilation Direct Flow series of Circulation Fans:

  • Powerful ½ hp motor provides high airflow with a narrow airflow pattern for very high air speeds and effective cooling
  • Thermally protected TEAO motors with matching blades for high performance and long life
  • Safety spaced steel guards dipped in zinc and powder coated for superior corrosion resistance
  • Easy open guards for cleaning and/or blade replacement
  • 19" T-shaped, powder coated steel, fan mount included
  • Single speed and direct drive
  • Two year warranty
  • Made in the USA

Specific Features of Schaefer model 36DF 36" Direct Flow Circulation Fan:

  • Air Velocity (@ 5 times diameter):920
  • BESS Lab Performance Test No.:8058
  • Blade Color:Gray
  • Blade Material:Galvanized Steel
  • CFM (free air):13140
  • CFM Calculation Standard:ANSI/AMCA Standard 230-99
  • CFM Range (Free Air):10001 - 15000
  • CFM/Watt (free Air):23.8
  • Component Certifications:Motor - UL/CSA
  • Cord:Not included
  • Country of Origin:US
  • Diameter (inches):36
  • Drive Type:Direct
  • Fixed or Portable:Fixed
  • Frequency (Hz):60
  • Guard Color:White
  • Guard Material Coating:Powder Coated Steel
  • Guard Spacing (inches):1/2 - 1 UL507
  • Mount Included:VS36FMT
  • Mount Type Included:Ceiling
  • Nameplate Amps:7/3.5
  • Number of Wings:3
  • Oscillating:No
  • Phase:1
  • Power (hp):1/2
  • Power (Voltage Phase):115/230 Single Phase
  • Product Color:White
  • Speed Control Compatible:No
  • Speeds:1
  • VFD Compatible:No
  • Voltage:115/230

About Schaefer Ventilation Equipment:
Schaefer Ventilation, a division of Pinnacle Climate Technologies, is a leading manufacturer of high quality climate control systems for a wide range of commercial, industrial, and agricultural applications. Schaefer Ventilation Equipment is best known for making top quality air circulation fans, portable cooling fans, portable air conditioners, confined space ventilators, exhaust shutter fans, evaporative cooling and misting systems, electric and gas indoor and outdoor radiant heaters, fixed and portable heaters.

Shipping Shipping cost TBD - Contact Us For Freight Quote

Schaefer Ventilation Equipment 36DF
