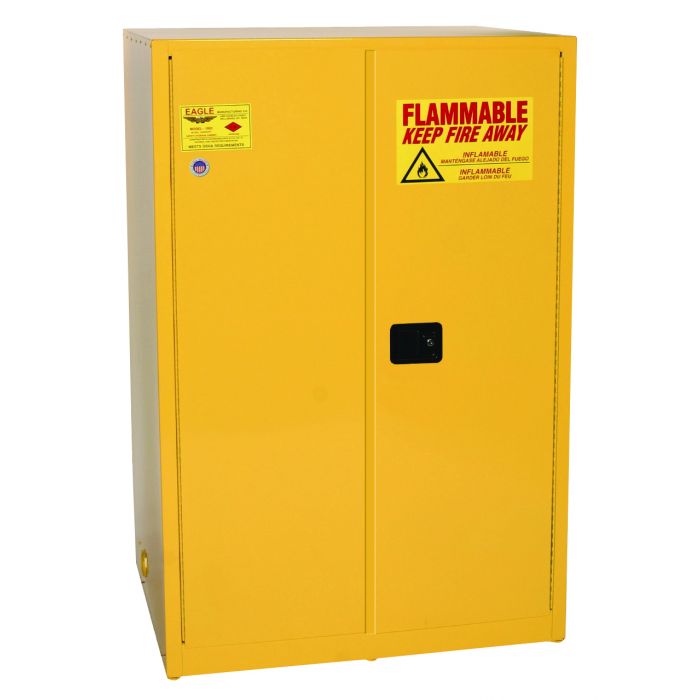

Eagle 9010X Self-Closing Flammable Liquid Storage Cabinet - 90 Gallon

Eagle 9010X Self-Closing Flammable Liquid Storage Cabinet - 90 Gallon
SKU: E700282
Regular price
Sale price
Regular price
Sold out
Unit price

The Eagle Model 9010X Standard 90 Safety Cabinet is the popular double deep 90 gallon cabinet. This model is easy to open and allows total access to the contents of the cabinet and allows for the storage of six safety cans per shelf. Usually ships within 4 business days.


  • Capacity: 90 gal.
  • Colors: Yellow, Red, Beige, Gray
  • Doors: 2 Manual Close
  • Shelves: 2
  • Shelf Depth: 29"
  • Shelf Model Number: 29945
  • Exterior Dimensions: 43" W x 34" D x 65" H"
  • Interior Dimensions: 39.5" W x 30.34" D x 60.5" H
  • Weight: 381 lbs.


  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Self-Closing (135 opening)
  • Concealed self-close mechanism provides obstruction-free access to top shelf space
  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom
  • Meet NFPA Code 30 and OSHA specifications

WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.*

*This Prop 65 Warning applies to the self-closing model, since the small fusible link that holds the door open contains lead. This is less than 1% of the total cabinet construction.

About Eagle Manufacturing
Eagle Manufacturing, part of the Justrite Safety Group, is a leader in the manufacturing of quality metal safety cabinets for industrial applications, including laboratories, manufacturing, warehouse, and maintenance facilities. Eagle Mfg. has set the industry standard for high quality steel safety cabinets for the storage of chemicals, paint, flammables, pesticides and other industrial liquids and hazardous materials.

Shipping Shipping cost TBD - Contact Us For Freight Quote

Eagle Manufacturing 9010X, 9010XRED, 9010XBEI, 9010XGRAY
