Correctional Exit Signs & Emergency Lighting: What Prisons and Detention Facilities Need to Know
Exit signs and emergency lights get lumped together constantly, but they do two different jobs. An exit sign identifies the route of egress. An emergency light provides illumination when normal power goes out.
In a prison, jail or detention center, there's a third layer to think about: the equipment may also need to hold up against impact, tampering, vandalism or unauthorized access.
That means the right product isn't just “an exit light.” Buyers, facility managers, electricians and contractors need to figure out whether the application calls for exit identification, emergency illumination or both — and only then start matching equipment to the security environment. This guide walks through that distinction and compares the main types of correctional exit signs and emergency lighting.
Anchortex supplies Shat-R-Shield correctional exit signs and emergency lights for prisons, jails and detention facilities. Explore our Correctional & Detention Facility Lighting collection for the full Ironclad exit and emergency lineup, or see our guide to correctional lighting fundamentals for the bigger picture.
Table of Contents
- Exit Signs vs. Emergency Lights: What Is the Difference?
- Why Use Correctional-Grade Exit Signs?
- Correctional Exit & Emergency Lighting: Quick Comparison
- Heavy-Duty Correctional Exit Signs: SDI
- Slim Correctional Exit Signs: RZ
- Zero-Watt Self-Luminous Exit Signs
- Does “Zero-Watt” Mean No Maintenance?
- Battery-Backup Emergency Lighting: SRSEM
- Powered vs. Self-Luminous Exit Signs
- What About Battery Backup?
- What Does UL 924 Mean?
- Does Every Exit Sign in a Prison Need to Be Vandal-Resistant?
- What Should Buyers Compare?
- Common Mistakes When Selecting Correctional Exit & Emergency Lighting
- Frequently Asked Questions About Correctional Exit Signs
- Choosing the Right Correctional Exit Sign or Emergency Light
Exit Signs vs. Emergency Lights: What Is the Difference?
The basic distinction is simple:
-
Exit sign: Identifies an exit or route of egress.
-
Emergency light: Illuminates the surrounding area or path when normal power is interrupted.
Many facilities need both. For correctional environments, the selection process also has to weigh:
- Occupant access
- Expected abuse
- Mounting location
- Backup-power requirements
- Environmental conditions
- Applicable project and life-safety requirements
A sign mounted inside an inmate-accessible housing area may need construction that looks nothing like one located in a staff-only office.
Why Use Correctional-Grade Exit Signs?
A standard commercial exit sign can work fine in administrative or staff-only areas. In inmate-accessible or higher-abuse locations, though, buyers usually need something built for more punishment.
Depending on the application, a correctional exit sign may bring:
- Impact-resistant construction
- Polycarbonate security covers
- Tamper-resistant fasteners
- Secure mounting
- Limited access to internal components
- Battery-backup options
- Damp- or wet-location protection
Practical note: The goal isn't to install the heaviest exit sign everywhere in the facility — it's to match the product to occupant access, abuse risk, mounting conditions and the actual project requirements.
Correctional Exit & Emergency Lighting: Quick Comparison
| Product | Primary Function | Key Difference |
| SDI Correctional Exit | Powered EXIT sign | Rugged correctional construction |
| RZ Exit Sign | Powered EXIT sign | Slim, low-profile design |
| Zero-Watt INH Series | Self-luminous EXIT sign | No wiring, batteries or facility power |
| SRSEM | Emergency light | Battery-backed emergency illumination |
These four products live in the same general exit/emergency family, but each one solves a different problem.
Heavy-Duty Correctional Exit Signs: SDI
For inmate-accessible or higher-abuse environments, a purpose-built correctional exit sign is often the right call. The Shat-R-Shield Ironclad SDI Correctional Exit uses rugged construction, a polycarbonate security faceplate and tamper-resistant access screws — built for demanding correctional, detention and institutional settings.
The SDI is worth a closer look when:
- The sign sits in an inmate-accessible area
- Impact or attempted tampering is a real concern
- A rugged housing and security faceplate are required
- Project specs call for a correctional-style EXIT sign
- Battery-backed operation is needed
Here's the point worth remembering: a correctional EXIT sign isn't just a standard commercial sign with a different label slapped on. Construction, faceplate protection, mounting and access to internal components all matter more once you're in a higher-risk location.
Slim Correctional Exit Signs: RZ
Not every secure area needs SDI-level construction. The Ironclad RZ is a slim LED exit sign with a low-profile housing and multiple mounting options. An optional polycarbonate security cover is available where a bit of extra vandal resistance is worth the upgrade.
The RZ tends to fit when:
- A low-profile EXIT sign is preferred
- Mounting flexibility matters
- Energy consumption is a consideration
- The area doesn't need SDI-level rugged construction
- The optional security cover covers the remaining risk
The split is straightforward: SDI leans into rugged correctional construction, RZ leans into a slimmer profile and flexible installation. That makes it easier to pick based on the actual location instead of treating the two as interchangeable.

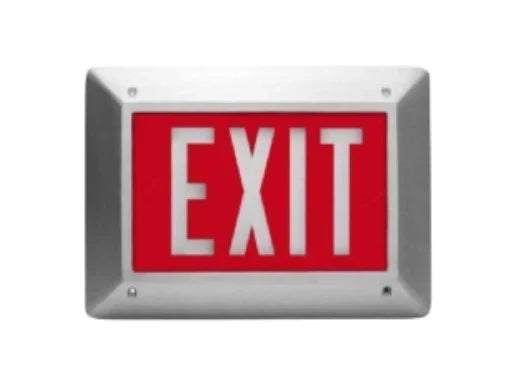

Zero-Watt Self-Luminous Exit Signs
Some installations raise a different question entirely: what if you need an EXIT sign somewhere that electrical wiring or battery upkeep just isn't practical?
The Ironclad Zero-Watt INH Series is a self-luminous exit sign built around sealed tritium light sources. It skips the electrical connection and the battery altogether, and it comes with rated service-life options.
A self-luminous sign is worth considering when:
- Running electrical wiring is difficult or expensive
- Battery maintenance is something you'd rather avoid
- Continuous illumination without facility power is useful
- You're dealing with a retrofit or a hard-to-wire spot
- The product meets the applicable project and life-safety requirements
Does “Zero-Watt” Mean No Maintenance?
No. The sign skips electrical power and battery replacement during its rated operating period, but it still needs regular inspection, physical-condition monitoring, and management according to its rated service life and applicable requirements. And once that service life ends, a tritium-containing device requires proper handling and disposal — that part doesn't go away.
Battery-Backup Emergency Lighting: SRSEM
The Ironclad SRSEM breaks the pattern of the other three products — it isn't an EXIT sign at all. It's an emergency light.
The fixture uses adjustable LED heads and battery backup to keep spaces lit when normal facility power drops. Emergency lighting typically needs to cover:
- Exit routes
- Corridors
- Doorways
- Stairs
- Egress areas
- Other spaces that have to stay visible during a power loss
The distinction is worth repeating: an EXIT sign tells people where the exit is; an emergency light helps them actually see the path to get there. A correctional project may need both running side by side.
Powered vs. Self-Luminous Exit Signs
One of the first calls to make is whether the application needs a powered exit sign or a self-luminous one.
Powered LED exit signs — like the SDI and RZ — run on normal facility power and can often add battery backup. That gets you familiar electrical installation, LED illumination, multiple mounting configurations, and red or green options. The tradeoff is the electrical install itself, plus periodic inspection and eventual battery replacement if backup power is part of the setup.
Self-luminous exit signs — the Zero-Watt INH — skip facility electricity and batteries entirely. That cuts down on wiring and removes battery maintenance from the picture, but the sign has a defined service life and still needs to be selected, inspected and managed appropriately.
Neither technology wins by default. The right choice comes down to the location, the electrical design, your maintenance strategy and the project requirements.
What About Battery Backup?
Battery backup lets a powered exit sign or emergency light keep running when normal power fails. When comparing products, check:
- Whether battery backup is included or optional
- Required emergency runtime
- Battery type
- Testing or self-diagnostic features
- Maintenance requirements
Note: Don't assume every configuration of a powered exit sign comes with battery backup built in — it may need to be specified at the time of order.
What Does UL 924 Mean?
UL 924 is a safety standard tied to emergency lighting and power equipment, including exit signs and emergency luminaires. When evaluating correctional exit signs and emergency lighting, review the actual product listing and your project requirements rather than assuming every product in an exit/emergency family shares the same approvals.
Building, electrical and life-safety requirements should always be confirmed for the specific installation by the appropriate design professionals and the authority having jurisdiction.
Does Every Exit Sign in a Prison Need to Be Vandal-Resistant?
Not necessarily. A sign in an inmate-accessible housing area faces a completely different risk profile than one mounted in a staff-only administrative space. Ask:
- Can an inmate or detainee reach the sign?
- Is intentional impact likely?
- Are fasteners accessible?
- Could the faceplate or housing be opened?
- Is the sign mounted beyond normal reach?
- Is the area continuously monitored?
- What does the project specification actually require?
Same principle as correctional lighting generally: match the level of protection to the actual risk, not to the worst-case scenario across the board.
What Should Buyers Compare?
When choosing correctional exit signs or emergency lighting, look past price and appearance. Work through these six areas:
1. Function
Do you need exit identification, emergency illumination, or both?
2. Power Source
Normal AC power, AC plus battery backup, or self-luminous technology with no wiring?
3. Security Exposure
Is the equipment in a staff-only location, closely monitored, directly accessible to inmates or detainees, or installed somewhere with a history of abuse?
4. Mounting
Does the project call for wall, ceiling, canopy or pendant mounting?
5. Environment
Is the location dry, damp, wet, or exposed to cleaning and other demanding conditions?
6. Compliance
What listings, codes, project specifications and facility requirements apply?
Working through these questions up front narrows the product field fast.
Common Mistakes When Selecting Correctional Exit & Emergency Lighting
Treating Exit Signs and Emergency Lights as the Same Product
They serve different purposes, and a facility may need both.
Automatically Choosing the Heaviest Exit Sign
Not every location carries the same abuse risk — match construction to the actual environment instead of defaulting to overkill.
Forgetting to Specify Battery Backup
If emergency operation is required, confirm the ordered configuration actually includes it.
Assuming Every “Vandal-Resistant” Configuration Is Identical
Some products offer security covers or added protection as optional add-ons rather than standard features. Check the specific configuration being ordered.
Ignoring Maintenance
Powered battery-backed signs and self-luminous signs come with different inspection, maintenance and lifecycle needs. Sort that out before you buy, not after.
Frequently Asked Questions About Correctional Exit Signs
Q: What is the difference between an exit sign and an emergency light?
An exit sign identifies an exit or route of egress. An emergency light illuminates the surrounding path or space when normal power is lost. Correctional facilities frequently need both, since they solve different problems during a power outage.
Q: What type of exit sign is used in correctional facilities?
It depends on occupant access, abuse risk, mounting requirements, available power and project specs. Options range from rugged correctional LED signs to slim LED signs to self-luminous zero-watt signs — there's no single default answer.
Q: What is a zero-watt exit sign?
A zero-watt exit sign is self-luminous and skips normal electrical power or batteries entirely. The Shat-R-Shield INH Series uses sealed tritium light sources and runs for a defined rated service life before it needs replacing.
Q: Do correctional exit signs need battery backup?
Not always. Powered exit signs may need battery backup when emergency operation is specified in the project. Self-luminous exit signs operate independently of facility electricity or batteries, so backup power isn't part of that equation.
Q: What is a vandal-resistant exit sign?
A vandal-resistant exit sign includes features meant to add protection against physical abuse — stronger housings, security faceplates, impact-resistant covers or protected mounting, depending on the specific product.
Q: Can a self-luminous exit sign replace an electrically powered exit sign?
Sometimes, but it has to meet the requirements of the specific project, location and applicable life-safety rules. That decision should be confirmed as part of the overall egress design, not made in isolation.
Choosing the Right Correctional Exit Sign or Emergency Light
Start by nailing down the function you actually need. Need a rugged powered EXIT sign for an inmate-accessible area? The Shat-R-Shield Ironclad SDI is worth a look. Want something slimmer? Consider the Ironclad RZ. If electrical wiring and battery maintenance are the sticking points, the Zero-Watt INH Series offers a self-luminous alternative. And if the real need is emergency illumination rather than exit identification, the Ironclad SRSEM covers that separately.
From there, work through occupant access, abuse risk, mounting, environmental conditions, backup-power requirements and project specifications.
Anchortex supplies Shat-R-Shield correctional exit signs, emergency lights and other correctional lighting for prisons, jails and detention facilities. Explore our Correctional & Detention Facility Lighting collection or contact Anchortex for help comparing exit and emergency-lighting options for your facility, renovation or construction project.
```
